How to Choose the Right Spiral Tube for EMI Shielding: A Complete Selection Guide
Learn how to choose the right EMI shielding spiral tube for your application. This complete guide covers shielding effectiveness, material options (beryllium copper, stainless steel, Hastelloy), compression force, groove design, and selection criteria for semiconductor, medical, and telecom equipment.
Introduction: Why the Right Spiral Tube Matters
Electromagnetic interference is no longer a niche concern. From semiconductor wafer fabs and medical imaging suites to telecom base stations and military avionics, EMI can corrupt signals, degrade performance, and even cause system failures. The shielding gasket you choose sits at the seam of your enclosure—the single most vulnerable point for EMI leakage.

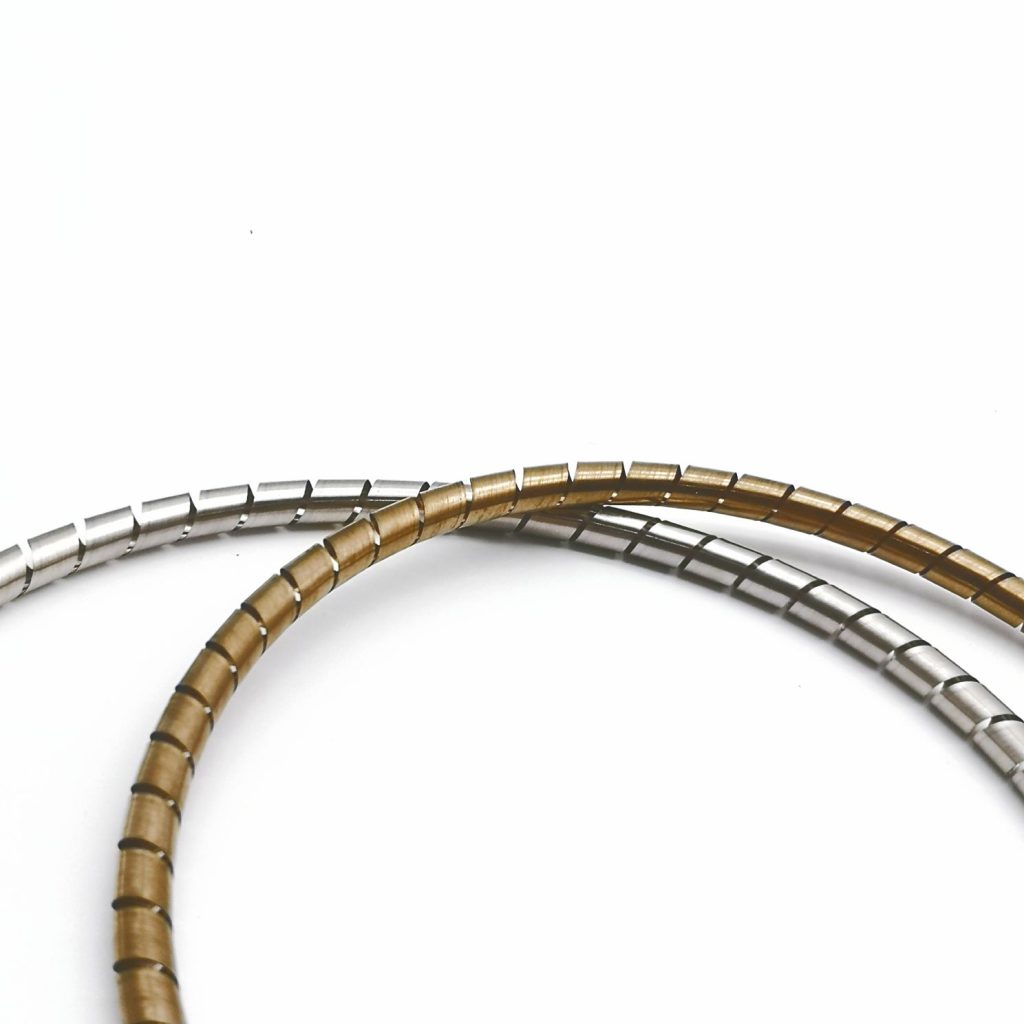

Among all shielding solutions, the spiral tube (also called spiral shield gasket or metal spiral EMI gasket) stands out. Its unique helical winding structure provides multiple points of continuous electrical contact, creating a robust Faraday cage effect across seams, doors, and removable panels. But with multiple material options, force ratings, and installation variables, how do you choose the right one?
This guide walks you through a systematic selection process—from defining your application requirements to final validation.
Step 1: Define Your Application Requirements
Before evaluating any product specifications, you must clearly define your operating environment. The wrong material in the wrong environment will fail—often catastrophically.
Key Questions to Answer
| Consideration | What to Ask |
|---|---|
| Shielding Need | What frequencies need attenuation? 1 MHz? 10 GHz? |
| Shielding Effectiveness Target | What dB level is required? 60 dB? 100 dB? 165 dB? |
| Temperature Range | What are the min/max operating temperatures? |
| Corrosive Exposure | Will the gasket contact chlorides (marine), acids (chemical plants), or moisture? |
| Compression Cycles | Is the enclosure opened frequently (high cycle) or rarely (static)? |
| Closure Force | Does the design require low closure force? |
| Galvanic Compatibility | What metal is the mating enclosure (aluminum, steel, etc.)? |
| Environmental Seal Needed | Must the gasket also block dust, moisture, or liquids? |
The “60–120 dB Rule”
Most commercial equipment requires shielding effectiveness between 60 and 120 dB. General industrial applications often target 60–100 dB, while aerospace, military, and medical equipment may demand 100 dB or higher. High-end spiral tubes can achieve up to 165 dB—far beyond standard requirements.
Step 2: Understand the Key Performance Metrics
2.1 Shielding Effectiveness (SE)
Shielding effectiveness measures how much electromagnetic energy the gasket attenuates, expressed in decibels (dB). Higher dB means better shielding.
| SE Level | Attenuation | Typical Application |
|---|---|---|
| 60 dB | 99.9% | Commercial electronics, general industrial |
| 100 dB | 99.99999% | Aerospace, military, medical devices |
| 165 dB | ~99.99999999999997% | Semiconductor equipment, mission-critical systems |
Spiral tubes typically deliver 86–165 dB depending on design and material. The shielding quality may vary with frequency, with peak performance often at lower frequencies like 1 GHz.
2.2 Compression Force and Resilience
Spiral tubes are available in different force ratings to match your closure force requirements.
Force Series Overview:
| Force Series | Compression Force (OD 3.2mm, 25% comp) | Typical Use |
|---|---|---|
| Standard Force (S Series) | ~4.8 ±15% Kgf/in | General industrial, balanced performance |
| Medium Force (M Series) | ~2.0 ±15% Kgf/in | Moderate sealing pressure |
| Low Force (L Series) | ~0.4 ±15% Kgf/in | Precision equipment, sensitive applications |
Important: For standard spiral tubes (cordless), the spring force is primarily a function of strip thickness—the force is proportional to the cube of the thickness. For designs requiring higher compression force with better over-compression protection, inner cord (core) options such as solid silicone, silicone tube, or silicone foam are available.
2.3 Optimal Compression
The recommended compression for spiral tubes is 25% of the spiral diameter. Operating outside this range degrades performance:
- Under-compression: Insufficient contact force, reduced SE, potential leakage
- Over-compression: Risk of permanent damage to the spiral structure
If your application involves risk of over-compression (e.g., variable gap sizes, thermal expansion), selecting a spiral tube with an inner silicone core prevents crushing damage.
Step 3: Select the Right Material
Material selection is the most critical decision in the spiral tube selection process. The table below summarizes the four primary material families.
| Material | Key Properties | Best Environment | Shielding Effectiveness |
|---|---|---|---|
| Beryllium Copper | High conductivity (17–28% IACS), excellent spring properties, good corrosion resistance | General EMI shielding, electrical contact applications | 60–100 dB |
| Stainless Steel | High strength, corrosion resistance, cost-effective | Dry/indoor environments, cost-sensitive applications | 60–100 dB |
| Hastelloy C‑276 | Superior resistance to pitting, crevice corrosion, and stress corrosion cracking | Harsh chemical, marine, sour gas, high-temperature | 60–100 dB |
| Titanium (TA1/TC4) | High strength-to-weight, excellent corrosion resistance, biocompatible | Medical implants, aerospace, chemical processing | 60–100 dB |
3.1 Beryllium Copper: The All-Rounder
Tin- or nickel-plated beryllium copper (BeCu) is the most common material for spiral tubes. It offers:
- High electrical conductivity (17–28% IACS)
- Excellent spring properties for repeated compression cycles
- Good corrosion resistance
- Plating options for galvanic compatibility
When tin-plated BeCu contacts aluminum in saline environments, the tin layer provides excellent galvanic corrosion protection.
3.2 Stainless Steel: Cost-Effective Corrosion Protection
Stainless steel spiral tubes are used when corrosion protection is the primary concern and conductive properties are less critical.
301 Stainless Steel: High strength, cost-effective for consumer electronics and robotics; moderate corrosion resistance suitable for indoor/dry environments.
304 Stainless Steel: Superior corrosion resistance for food/medical applications; good weldability; non-magnetic when annealed.
316 Stainless Steel: Enhanced corrosion resistance with molybdenum for marine/offshore environments; operating temperature -200°C to +800°C; excellent for pharmaceutical cleanrooms and nuclear applications.
17-7PH: Precipitation-hardened alloy with high strength-to-weight ratio; ideal for military antenna shielding (MIL-STD-461 compliance) and oil/gas downhole sensors.
3.3 Hastelloy C‑276: Extreme Environments
For semiconductor equipment exposed to aggressive chemical gases (CVD processes, plasma etching), high-temperature environments, or severe corrosion conditions, Hastelloy spiral gaskets are the premium choice.
Key properties:
- Resistant to pitting, crevice corrosion, and stress corrosion cracking
- Maintains strength at elevated temperatures
- Nickel-molybdenum-chromium composition (Ni balance, Mo 15–17%, Cr 14.5–16.5%)
3.4 Titanium: Lightweight and Biocompatible
Titanium spiral tubes (TA1/TC4) offer:
- High strength-to-weight ratio
- Excellent corrosion resistance
- Biocompatibility for medical applications
- Good high-temperature properties
Ideal for medical implants, aerospace components, and applications requiring weight reduction without sacrificing corrosion resistance.
Step 4: Choose the Right Core (Inner Cord) Option
Spiral tubes are available with or without inner cord (core). The core serves multiple functions: it prevents over-compression damage, adds environmental sealing, and increases compression force.
| Core Type | Code | Characteristics | Compression Force |
|---|---|---|---|
| No Inner Cord | W | Lowest cost, most flexible | Baseline |
| Silicone Foam | F | Soft, good for low compression force applications | Moderate increase |
| Silicone Tube | T | Hollow core, balanced performance | Medium increase |
| Silicone Solid | A | Highest compression force, best over-compression protection | Highest increase |
Selection guidance:
- If over-compression is not a concern: Cordless design (Code W) offers the best quality/price ratio and is recommended for most applications
- If handling/installation may cause compression problems: Select silicone foam (F) or silicone tube (T) cores
- If the application requires both EMI shielding and environmental sealing: Select solid silicone (A) core—particularly important for outdoor or high-humidity applications
Step 5: Verify Galvanic Compatibility
When two dissimilar metals contact in the presence of an electrolyte (moisture, salt, chemicals), galvanic corrosion occurs. The more active metal corrodes at an accelerated rate.
Example: Aluminum enclosures are common. If an unplated stainless steel spiral tube contacts aluminum in a humid environment, the aluminum will corrode rapidly.
Solutions:
- Choose plating that matches the housing metal: tin and nickel plating on BeCu offer excellent corrosion protection when contacting aluminum in saline environments
- Alternatively, select a material closer on the galvanic series to the mating metal
General guidance:
- For aluminum housings: Use tin-plated or nickel-plated beryllium copper
- For steel housings: Stainless steel is generally compatible
- For marine/offshore environments: Use Hastelloy or properly plated BeCu
Step 6: Design the Mounting Groove
Proper groove design is critical for optimal spiral tube performance. Follow these recommended guidelines:
Standard O-Ring Groove Mounting
Spiral tubes are designed to be mounted in a standard O-ring groove.
Key dimensions:
| Parameter | Recommended Value | Source |
|---|---|---|
| Groove Depth | 75% of spiral diameter | |
| Groove Width | At least 35% wider than gasket diameter |
Example: For a 3.2 mm OD spiral tube:
- Groove depth ≈ 2.4 mm
- Groove width ≈ 4.32 mm minimum
The groove must be clean, free of burrs, and have smooth surfaces to prevent damage to the spiral structure during installation and operation.
Step 7: Match the Spiral Tube to Your Industry
Semiconductor Equipment
Semiconductor manufacturing equipment (plasma etching, CVD, deposition tools) faces unique challenges: aggressive process gases, high vacuum requirements, and high-temperature bake-out cycles.
Recommended configuration:
- Material: Hastelloy C‑276 for chemical gas exposure, 316 stainless steel for less aggressive environments
- Core: Silicone solid for vacuum integrity
- Force: Standard or medium
- Shielding requirement: Up to 165 dB
Why: Hastelloy resists pitting and stress corrosion cracking in aggressive chemical gases; silicone core maintains vacuum seal; high SE protects sensitive wafer processing.
Medical Devices
Medical equipment (MRI, patient monitors, surgical instruments) requires reliable EMI shielding to prevent interference with sensitive physiological signal detection (ECG signals as low as 1–2 mV, EEG signals as low as 5–100 μV).
Recommended configuration:
- Material: 304/316 stainless steel or tin-plated beryllium copper
- Core: Silicone solid for environmental sealing
- Force: Low to medium (precision equipment)
- Compliance: FDA, IEC 60601-1-2, YY 0505-2012
Why: Medical environments require sterilization compatibility and long-term stability (8–10 years); stainless steel offers excellent biocompatibility and corrosion resistance; silicone core prevents moisture ingress.
Telecommunications and Data Centers
Telecom equipment and data center servers require high-density EMI protection with minimal closure force.
Recommended configuration:
- Material: Tin-plated beryllium copper or 301 stainless steel
- Core: No inner cord (cordless) for cost efficiency
- Force: Low to medium
Why: High-density enclosures require low closure force to prevent damage to sensitive components; cordless design reduces cost when over-compression is not a concern.
Aerospace and Defense
Aerospace applications demand the highest reliability under extreme conditions: vibration, wide temperature swings, salt fog, and high-altitude pressure changes.
Recommended configuration:
- Material: 316 stainless steel, Hastelloy, or titanium
- Core: Silicone solid for environmental seal
- Force: Standard or medium
- Compliance: MIL-STD-461, MIL-STD-810
Why: 316 stainless steel resists salt fog per MIL-STD-810; high reliability under cyclic stress; titanium offers weight reduction where critical.
Step 8: Common Selection Mistakes to Avoid
| Mistake | Consequence | Prevention |
|---|---|---|
| Ignoring galvanic compatibility | Rapid corrosion at contact interface | Verify material compatibility; use appropriate plating |
| Selecting wrong force rating | Under-compression (reduced SE) or over-compression (damage) | Calculate required closure force before selection |
| Neglecting core selection | Over-compression damage in variable-gap applications | Select appropriate core if gap variation is significant |
| Improper groove design | Poor seating, reduced SE, gasket damage | Follow recommended groove depth and width guidelines |
| Over-specifying material | Unnecessary cost | Match material to actual environment, not worst-case |
| Under-specifying material | Premature failure in harsh environment | Test material samples in actual operating conditions |

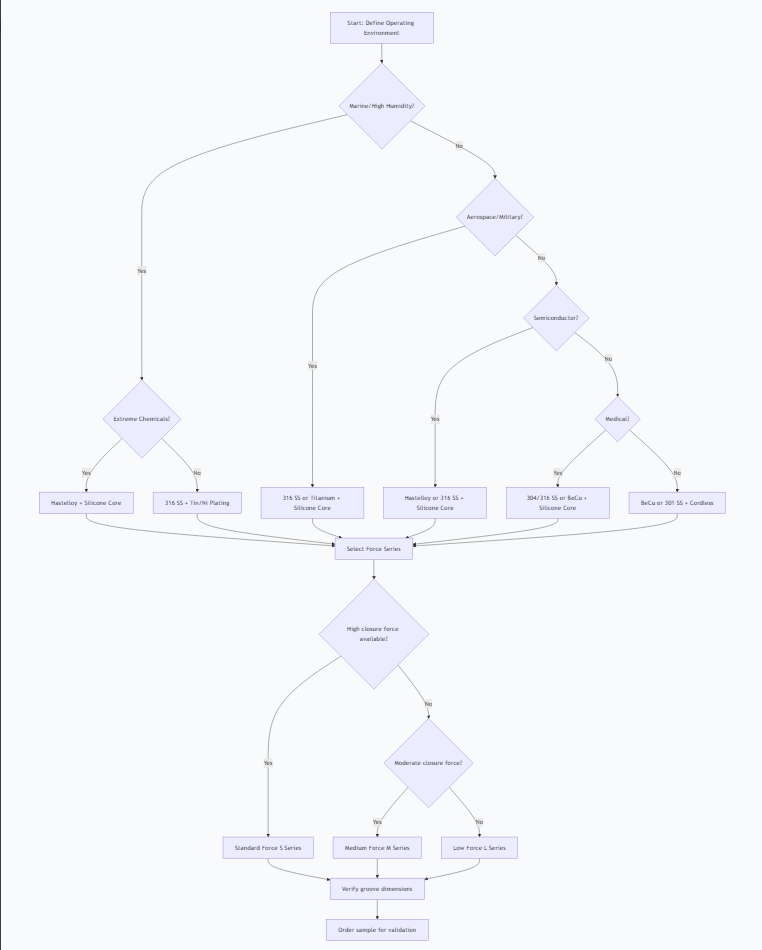

Step 9: Quick Selection Flowchart
Step 10: Ordering Guide
When ordering spiral tube gaskets, specify the following parameters using a standardized part numbering system:
| Parameter | Code Options | Example |
|---|---|---|
| Force | S (Standard), M (Medium), L (Low) | S |
| Material | B (BeCu), BS (Sn-plated BeCu), BN (Ni-plated BeCu), SN (SS), HA (Hastelloy) | BN |
| Outer Diameter (OD) | 008–120 (0.8–12.0 mm) | 086 (0.86 mm) |
| Core | W (none), A (solid), T (tube), F (foam) | A |
Example: HDS-SBN-086A = Standard Force, Ni-plated BeCu, 0.86 mm OD, Silicone solid core
When to Request a Custom Design
Custom spiral tubes may be necessary when:
- Standard OD sizes (0.8–12 mm) do not fit your groove
- Non-standard force requirements are needed
- Special plating (silver, gold) is required for specific galvanic or conductivity needs
- Unusual core materials or durometers are specified
Conclusion: A Systematic Approach to Selection
Choosing the right spiral tube for EMI shielding doesn’t have to be complicated. By following this systematic approach—defining your environment, selecting the appropriate material, matching the force rating to your closure requirements, designing the groove properly, and considering core options for over-compression protection—you can achieve reliable, long-lasting EMI shielding.
Quick Summary Checklist:
- Define frequency range and required shielding effectiveness
- Assess environmental factors (temperature, corrosion, moisture)
- Select material based on environment and galvanic compatibility
- Choose force series based on closure force available
- Select core based on over-compression risk and environmental sealing needs
- Design groove per recommended dimensions
- Verify material compliance with industry standards (RoHS, FDA, MIL-STD, etc.)
- Order samples and validate under actual operating conditions
