Handa’s Glass Fiber Aluminum Foil Tape vs. Standard Aluminum Foil Tape: What’s the Difference?

Aluminum foil tapes are widely used across industries for sealing, insulation, EMI shielding, and thermal management. However, not all foil tapes are created equal. At Handa Shielding, we offer both Standard Aluminum Foil Tape and Glass Fiber Reinforced Aluminum Foil Tape, each designed for specific technical needs. Understanding their similarities and differences can help engineers and procurement teams choose the right product for demanding applications.

---

🔍 What They Have in Common

Both types of foil tape are built around the core function of providing barrier protection and heat reflection, using a layer of aluminum foil. Here’s what they share:

✅ Key Similarities:

• Aluminum Foil Base:
  Both tapes feature a high-purity aluminum layer that offers excellent reflectivity, conductivity, and moisture resistance.
• Adhesive Backing:
  Available with pressure-sensitive adhesives (PSA) such as acrylic or silicone for easy application to most surfaces.
• Thermal Insulation:
  Aluminum reflects radiant heat effectively, making both tapes suitable for HVAC, ductwork, and high-temperature zones.
• Customizable Options:
  At Handa, both tape types can be customized in width, length, thickness, liner, and packaging to meet project-specific needs.
• RoHS & REACH Compliant:
  Environmentally friendly and free of hazardous substances—suitable for export to EU, US, and other regulated markets.

---

⚙️ What Sets Them Apart

While they share many base features, their structural design and performance characteristics are quite different:

🧵 1. Backing Structure

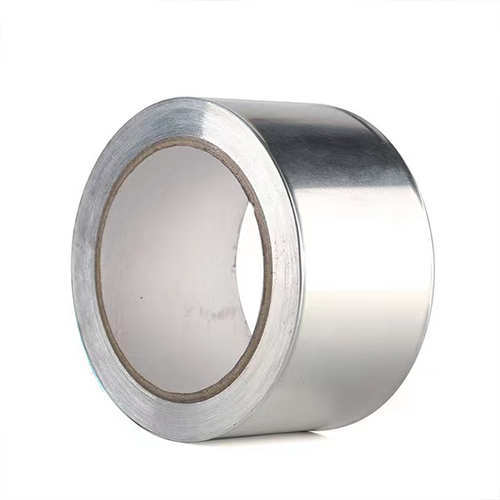

• Standard Aluminum Foil Tape:
  Made from pure aluminum foil only, which is soft, flexible, and conformable.

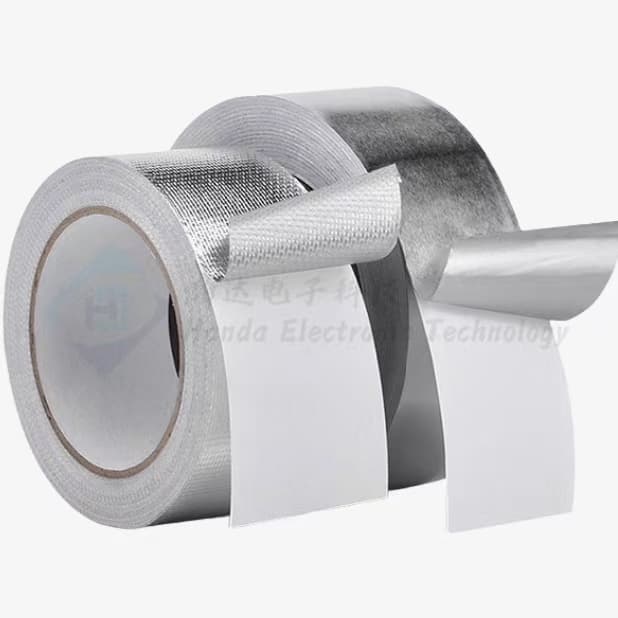

• Glass Fiber Aluminum Foil Tape:
  Reinforced with woven or laminated fiberglass cloth, making it stronger, more tear-resistant, and dimensionally stable.

🔥 2. Heat & Flame Resistance

• Standard Tape:
  Performs well in moderate thermal environments (up to 150 °C).
• Glass Fiber Tape:
  Withstands temperatures up to 250 °C (with silicone adhesive: peak 500 °C), and is inherently flame-retardant—ideal for fire-critical areas.

🛡 3. Mechanical Strength

• Standard Tape:
  More flexible but prone to tearing or wrinkling under stress.
• Glass Fiber Tape:
  Delivers reinforced mechanical stability, especially on rough, curved, or sharp surfaces.

🌦 4. Environmental Endurance

• Standard Tape:
  Suitable for general indoor or protected outdoor use.
• Glass Fiber Tape:
  Resists UV, moisture, chemicals, corrosion, and long-term environmental degradation—ideal for exposed or industrial environments.

⚡ 5. EMI Shielding Capability

• Standard Tape:
  Offers basic EMI/RFI shielding when grounded.
• Glass Fiber Tape:
  Offers moderate shielding, especially when combined with conductive adhesive and proper grounding in layered assemblies.

---

📊 Application Comparison Table

Feature	Standard Aluminum Foil Tape	Glass Fiber Aluminum Foil Tape
Construction	Aluminum foil only	Aluminum foil + fiberglass reinforcement
Tear Resistance	Moderate	High
Max Temperature (°C)	~150	Up to 250 (500 peak with silicone)
Flame Retardancy	Optional	Inherent (UL 723 / BS476)
EMI Shielding	Basic	Medium
UV & Moisture Resistance	Low to medium	High
Best Use	HVAC, duct sealing, light EMI	Fireproofing, EMI shielding, aerospace

---

🛠 When to Choose Glass Fiber Aluminum Foil Tape

Choose Handa’s Glass Fiber Aluminum Foil Tape when your project requires:

• Exposure to high temperatures or flames
• Reinforced sealing strength over uneven or harsh surfaces
• Long-term outdoor or industrial durability
• Enhanced EMI shielding or vapor barrier
• Custom engineering (e.g., die-cut parts, branded liners)

---

🧩 When to Choose Standard Aluminum Foil Tape

Standard foil tape is ideal for:

• General-purpose HVAC, duct sealing, or insulation wrap
• Lightweight indoor applications
• Low-budget or short-term industrial projects
• Non-critical EMI zones

---

✅ Conclusion

Whether you need high heat resistance, mechanical strength, or basic insulation, Handa Shielding has the right aluminum-based tape for your application. Our Glass Fiber Aluminum Foil Tape stands out for demanding environments, while our Standard Aluminum Foil Tape offers excellent value for general use.

Contact our technical team for custom sizing, liner options, flame test data, or to request a free sample roll.
