Handa Shielding TCS Dual-Wing Wire Mesh: Advanced Electromagnetic Shielding Solution

Handa Shielding TCS Dual-Wing Wire Mesh

Handa Shielding’s TCS Dual-Wing Wire Mesh is a cutting-edge electromagnetic interference (EMI) and radio frequency interference (RFI) shielding product designed to meet the rigorous demands of modern electronic systems. Combining innovative materials science with precision engineering, this mesh offers superior performance in critical applications such as telecommunications, aerospace, medical devices, and industrial electronics. Below is a detailed overview of its features, technical specifications, and applications.

Core Technology: TCS Material Innovation

The TCS in TCS Dual-Wing Wire Mesh stands for Tin-Coated Copper Clad Steel, a composite material engineered to balance conductivity, durability, and cost-effectiveness. This hybrid structure consists of:

1. Inner Steel Core: Provides mechanical strength and structural integrity, ensuring resistance to mechanical stress and environmental degradation.
2. Intermediate Copper Layer: Enhances electrical conductivity, critical for effective EMI/RFI attenuation.
3. Outer Tin Coating: Offers corrosion resistance, solderability, and compatibility with various mounting methods.

This material composition delivers shielding effectiveness (SE) of 45–60 dB across a broad frequency range (100 kHz to 10 GHz) , making it ideal for high-frequency applications where signal integrity is paramount.

Dual-Wing Structural Design

The Dual-Wing architecture is a patented design feature that optimizes both shielding performance and mechanical flexibility:

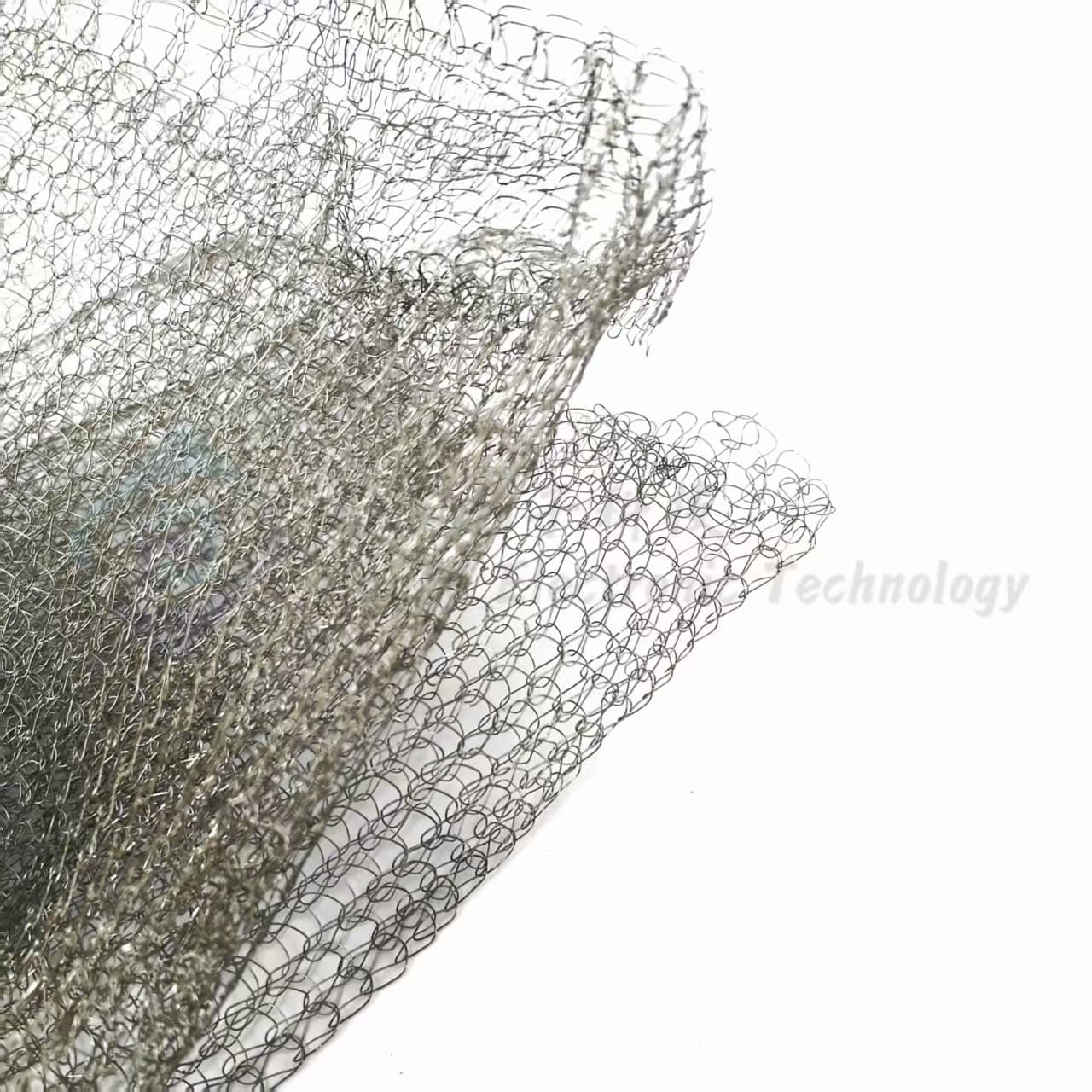

1. Double-Layer Knitted Mesh: Two layers of interwoven TCS wires create a redundant shielding barrier, minimizing electromagnetic leakage. The unique interlocking pattern ensures uniform conductivity and mechanical stability.
2. Asymmetric Wing Geometry: The “wings” are angled to enhance airflow and reduce eddy currents, critical for thermal management in enclosed systems. This design also improves compliance with irregular surfaces, ensuring consistent contact in dynamic environments.

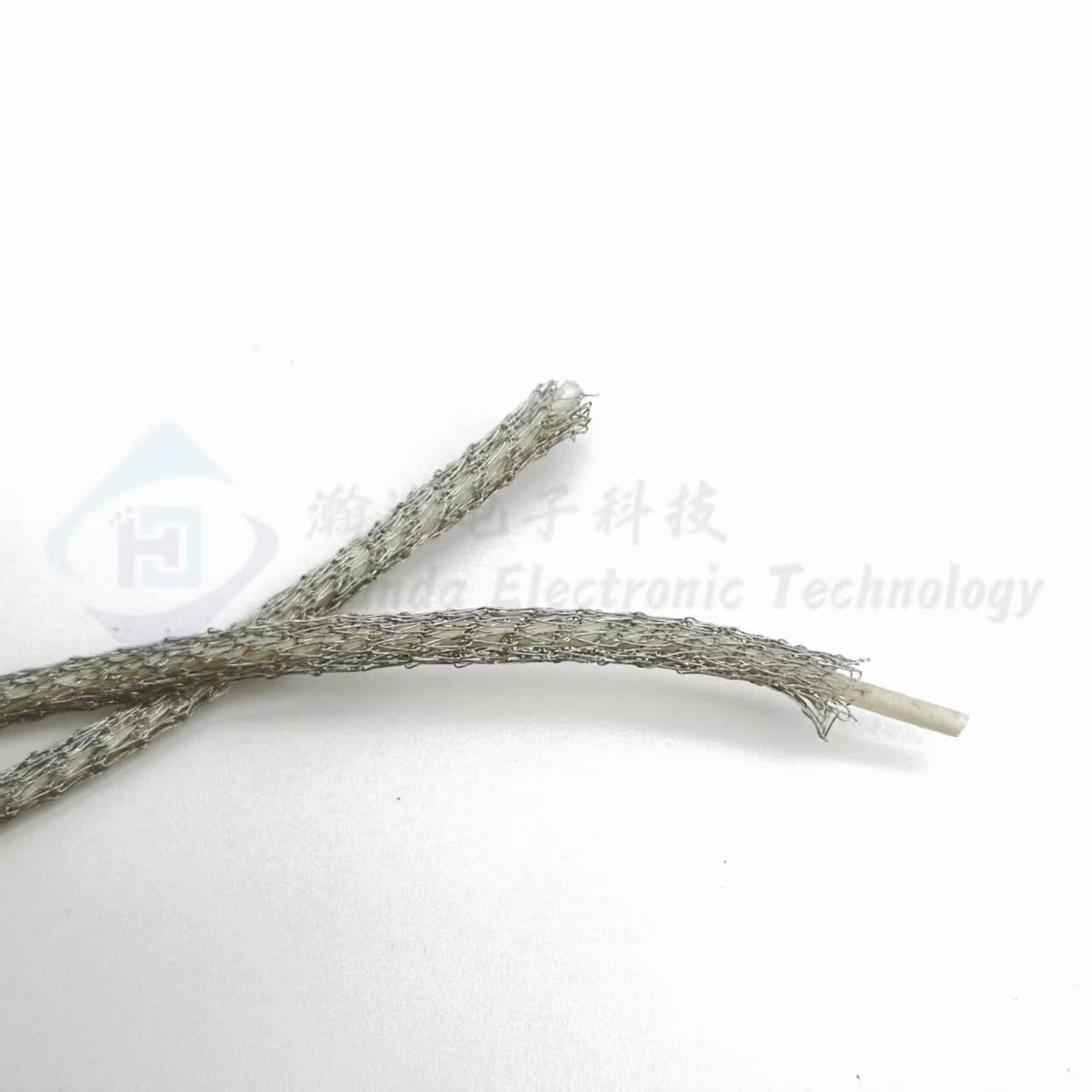

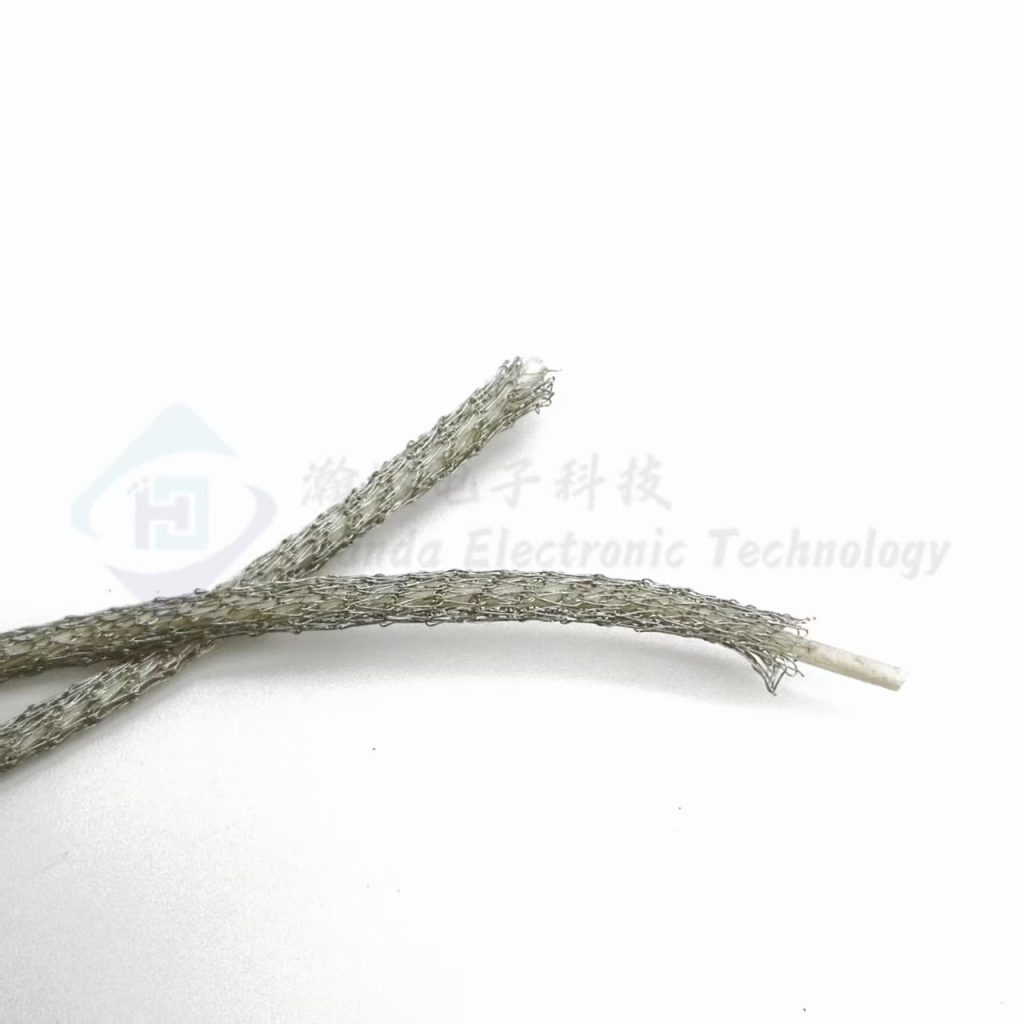

3. Elastomeric Core (Optional): A silicone or fluorosilicone core can be integrated to provide compression resilience, sealing against dust, moisture, and vibration while maintaining electrical continuity .

Technical Specifications

Applications

1. Aerospace and Defense

• Avionics Enclosures: Protects flight control systems, radar modules, and communication equipment from EMI/RFI in high-vibration environments.
• Satellite Components: Lightweight yet robust shielding for payloads and antennas, ensuring signal purity in space.

2. Medical Devices

• MRI Systems: Reduces electromagnetic interference in imaging equipment, improving diagnostic accuracy.
• Wearable Health Monitors: Flexible mesh integrates seamlessly into smart textiles, providing biocompatible shielding without compromising comfort .

3. Telecommunications

• 5G Base Stations: High-frequency shielding for RF amplifiers and antenna arrays, minimizing cross-talk and signal degradation.
• Data Centers: Protects server racks and networking equipment from EMI in high-density computing environments.

4. Industrial Electronics

• Automotive ECUs: Shielding for engine control units and ADAS systems, ensuring reliable operation in harsh under-hood conditions.
• Industrial Robotics: Flexible mesh for robotic arm joints and control panels, combining EMI protection with mechanical durability.

Customization and Integration

Handa Shielding offers tailored solutions to meet specific application requirements:

1. Material Options:
   • Conductive Coatings: Silver or nickel plating for enhanced conductivity in high-frequency applications.
   • Non-Conductive Coatings: Polyurethane or PTFE for chemical resistance in corrosive environments.
2. Geometry Optimization:
   • Pre-Formed Shapes: Custom die-cutting for complex geometries, including curved surfaces and tight corners.
   • Spiral Wound Gaskets: Continuous rolls for large-scale applications requiring seamless shielding.
3. Mounting Solutions:
   • Adhesive-Backed: Pressure-sensitive tapes for quick installation.
   • Mechanical Fasteners: Clips or screws for high-vibration environments.

Performance Advantages

1. Superior Shielding: The dual-layer design and TCS material combination outperform traditional single-layer meshes, particularly in high-frequency (GHz) ranges.
2. Cost-Effectiveness: Tin-coated copper clad steel balances performance and affordability, offering better value than pure copper or silver-based solutions.
3. Environmental Resilience: Corrosion-resistant coatings and high-temperature stability ensure longevity in extreme conditions.
4. Ease of Integration: Flexible mesh conforms to irregular surfaces, reducing installation complexity and downtime.

Testing and Compliance

All TCS Dual-Wing Wire Mesh products undergo rigorous testing to meet international standards:

• EMI Shielding Effectiveness: Measured per MIL-STD-285 and IEC 61000-4-3.
• Environmental Durability: Salt spray testing (ASTM B117) and thermal cycling (-55°C to +125°C).
• RoHS/REACH Compliance: Free of hazardous substances for global regulatory adherence.

Why Choose Handa Shielding?

• Innovation Leadership: Continuous R&D investment ensures TCS Dual-Wing Wire Mesh stays ahead of evolving EMI/RFI challenges.
• Global Support: Localized technical teams provide end-to-end solutions, from material selection to post-installation support.
• Sustainability: Eco-friendly coatings and recycling programs align with global environmental goals.

Conclusion
Handa Shielding’s TCS Dual-Wing Wire Mesh redefines EMI/RFI shielding with its advanced material science, innovative dual-wing design, and unmatched customization capabilities. Whether protecting critical aerospace systems or enabling next-gen 5G infrastructure, this product sets a new benchmark for performance, reliability, and cost-efficiency.
