EMI Helical Spring: The Complete Guide to Conductive Spiral Shielding Solutions

Discover how EMI Helical Springs (spiral springs) provide superior electromagnetic interference shielding. Learn about their design, materials, attenuation performance up to -80 dB, and applications in aerospace, medical, and electronics industries.

Introduction: The Growing Challenge of Electromagnetic Interference

In our increasingly connected world, electromagnetic interference (EMI) has become a pervasive challenge affecting everything from consumer electronics to mission-critical aerospace systems. EMI can result from both unintentional sources—such as electrical wiring, thermal noise, and static discharges—and intentional sources like radio signals, cellular networks, and wireless communication systems .

The elimination of EMI is crucial in electronic system design. Placement of components, along with the use of shielding and filtering, makes it possible to control and reduce interference that can disrupt system function. However, electrical discontinuities in enclosures—such as joints, seams, and gaps—directly affect the frequency and amount of EMI that can breach shielding .

Enter the EMI Helical Spring: a specialized conductive spring design that combines mechanical resilience with exceptional electromagnetic shielding performance. This comprehensive guide explores how these components work, their key advantages, and how to select the right solution for your application.

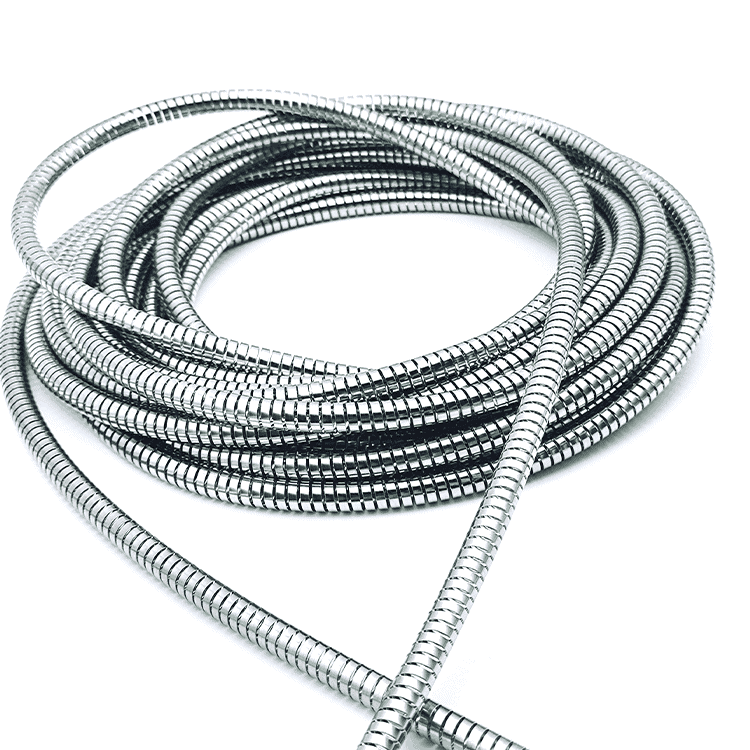

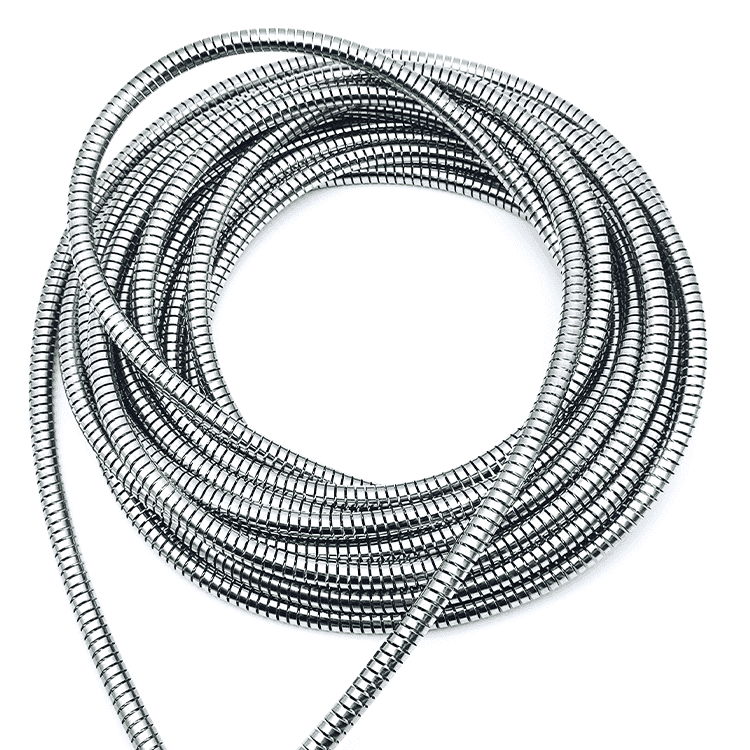

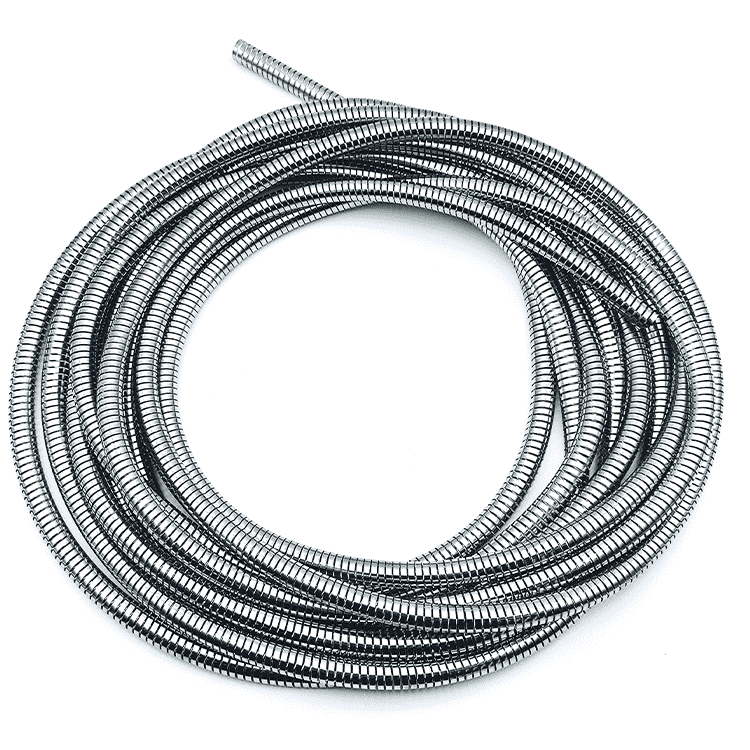

What is an EMI Helical Spring?

An EMI helical spring (also known as a spiral spring or conductive coil spring) is a precision-engineered component designed to provide both mechanical spring force and electromagnetic interference shielding in a single integrated solution .

Fundamental Design Principles

Unlike standard helical springs that simply store mechanical energy, EMI helical springs are engineered with specific geometries and materials to create continuous conductive pathways. Key design features include:

• Modified spring geometry optimized for consistent electrical contact
• Multiple contact points along the spring circumference
• Ability to maintain seal integrity during dynamic movements
• Adaptability to various shielding configurations

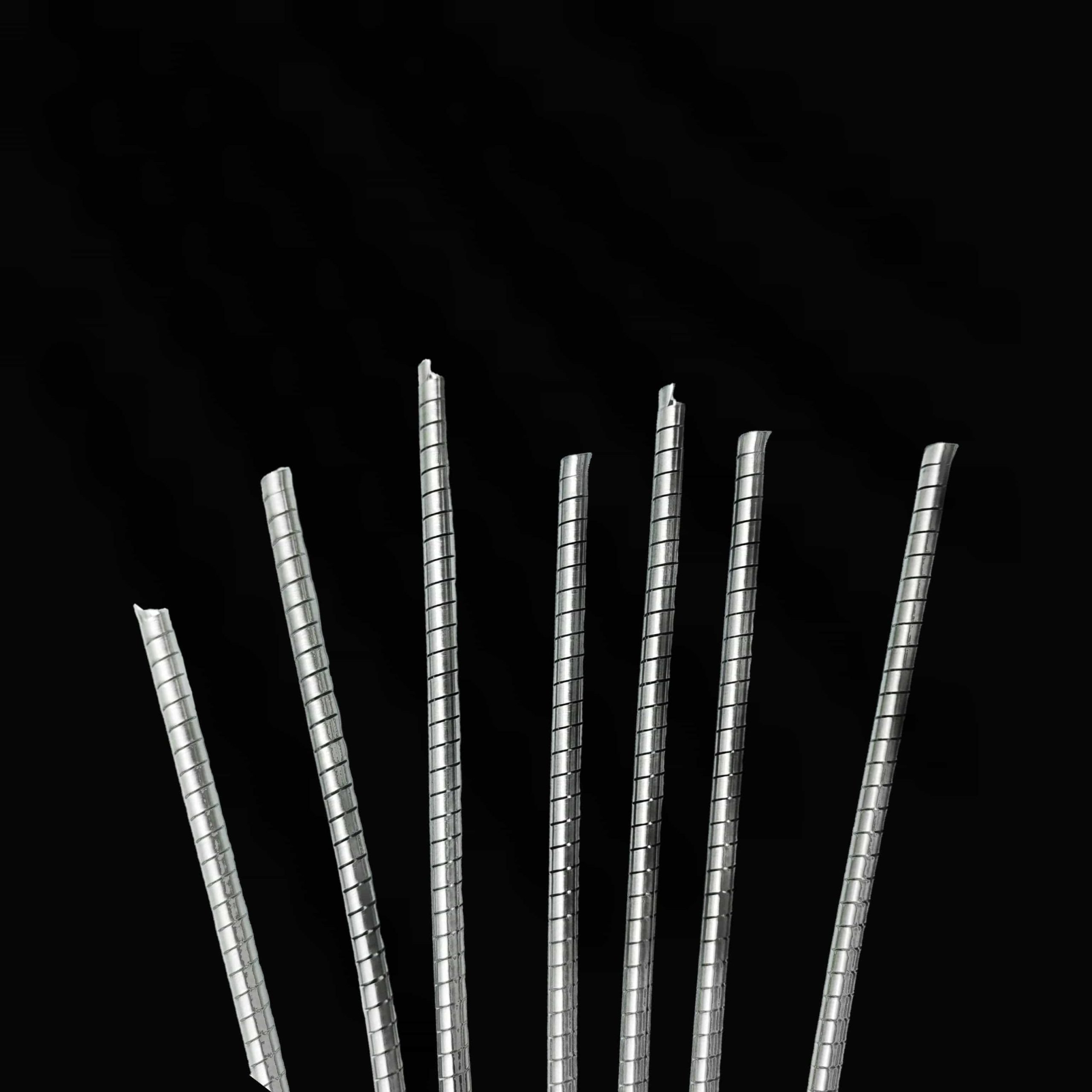

Overlap Helical Coil Design

A particularly effective configuration is the overlap helical coil, where adjacent loops of a conductive ribbon overlap along the width of the ribbon. This design creates a cross-diametric compression spring with superior shielding characteristics .

How EMI Helical Springs Achieve Shielding

The Three Mechanisms of EMI Shielding

EMI/RFI shielding is achieved through three main mechanisms: Reflection, Absorption, and Multiple Reflection .

How Helical Springs Leverage These Mechanisms:

1. Reflection: The conductive material of the helical spring reflects the electric component of electromagnetic waves. Materials with high electrical conductivity—such as silver, copper, and conductive alloys—are most effective for this mechanism .
2. Absorption: The magnetic component of EMI is addressed through absorption, which requires materials with high magnetic permeability. Stainless steel alloys and iron-nickel alloys (including mu-metal) excel at this function .
3. Multiple Reflection: The helical geometry itself creates multiple reflecting boundaries that scatter electromagnetic waves, further reducing interference through internal reflections .

Continuous Conductive Pathways

The overlapping design of advanced EMI helical springs creates a low-impedance conductive network between components, redirecting EMI away from sensitive electronics. When properly installed, these springs establish:

• Faraday cage effect: The spring’s continuous conductive loops encapsulate components, blocking external EMI
• Grounding integration: Springs maintain electrical continuity to system ground planes, dissipating interference

Materials for EMI Helical Springs

Standard Materials

Plating Options

The conductive ribbon can be plated with various metals to enhance performance:

Exotic Alloys for Extreme Environments

For applications requiring superior performance in harsh conditions:

Performance Characteristics and Test Data

Attenuation Performance

EMI helical springs can achieve remarkable shielding effectiveness. Test data from overlapping helical coil designs shows:

• Attenuation: Up to -70 dB to -80 dB reduction in electromagnetic energy passing through shielded spaces
• Frequency Range: Substantially constant attenuation from 1 MHz to 600 MHz
• Attenuation Resistance Rating: Not less than 2.0 dB ohms per inch, with premium designs achieving >3.5 dB ohms per inch

Comparative Test Results

The overlapping design provides significantly better EMI attenuation due to continuous contact and reduced gap formation .

Key Performance Metrics

When evaluating EMI helical springs, consider these critical parameters:

• DC Resistance: Lower resistance indicates better conductivity (typical range: 14-30 mΩ/inch)
• Compressive Load: Affects contact pressure and consistency (5-10 lb·ft/inch typical)
• Attenuation Flatness: Consistency across frequency range
• Contact Redundancy: Multiple contact points ensure reliability under vibration

Applications Across Industries

Aerospace and Defense

EMI helical springs are critical in aerospace applications where system failure is not an option:

• Avionics: Shielding flight control systems from radar and communication interference
• Satellite connectors: Ensuring signal integrity in space-grade applications
• Missile systems: Protecting guidance electronics from electromagnetic pulses

Case Study: In satellite communication systems, gold-plated beryllium copper helical springs provided 40 dB EMI attenuation at 2-18 GHz, maintaining contact under thermal cycling from -65°C to 150°C .

Medical Devices

The medical industry relies on EMI helical springs for:

• MRI-compatible equipment: Non-magnetic materials prevent imaging artifacts
• Implantable devices: Biocompatible materials with reliable shielding
• Diagnostic equipment: Protection of sensitive electronics from interference

Automotive and Electric Vehicles

With the rise of EVs, EMI shielding has become increasingly critical:

• Battery management systems: Protection of sensors from high-voltage inverter interference
• Charging systems: Maintaining signal integrity during power transfer
• Control electronics: Shielding from electromagnetic noise

Case Study: Stainless steel helical springs integrated into EV battery connectors achieved 30 dB reduction in radiated emissions, meeting CISPR 25 compliance standards with 500,000+ cycle durability .

Industrial and Consumer Electronics

• Substation equipment: Protecting sensors in high-voltage environments
• Telecommunications: Shielding in data centers and communication hardware
• Consumer devices: Compact shielding for smartphones, wearables, and laptops

Installation and Design Considerations

Proper Installation for Optimal Performance

For maximum EMI shielding effectiveness, follow these guidelines:

1. Ensure continuous contact: The spring should be compressed to achieve consistent contact with mating surfaces
2. Minimize gaps: Opposing ends should be separated by less than 5% of the spring length; welding ends together is recommended for critical applications
3. Match groove dimensions: Proper groove design ensures optimal compression and contact force

When to Weld Ends

Design for Toroidal Applications

For curved installations where the spring forms a torus:

• Inner diameter should be not less than 8 times the coil diameter
• This ensures proper geometry without excessive distortion

EMI Helical Spring vs. Canted Coil Spring

Both helical springs and canted coil springs offer EMI shielding capabilities, but they have distinct characteristics:

Both spring types are made from alloy components that offer excellent EMI shielding performance. With correct design and installation, they can block both electric and magnetic components of electromagnetic waves .

Selection Guide: Choosing the Right EMI Helical Spring

Step 1: Define Your Requirements

Step 2: Select Material

Based on environmental factors :

Step 3: Choose Design Configuration

• Overlap ratio: 20-40% overlap provides optimal balance of flexibility and shielding
• Coil diameter: Should be less than 3× ribbon width for compact designs
• End treatment: Specify welded ends for critical applications

Step 4: Verify Performance

Request test data including:

• DC resistance measurements
• Attenuation across frequency range
• Compressive load characteristics
• Cycle life test results

Conclusion: The Versatile Choice for EMI Protection

EMI Helical Springs represent a proven, versatile solution for electromagnetic interference shielding across virtually every industry. Their unique combination of continuous conductive contact, mechanical resilience, and design flexibility makes them indispensable in applications where reliable shielding is critical .

From aerospace systems operating in extreme environments to medical devices requiring biocompatibility, and from electric vehicles to telecommunications infrastructure, EMI helical springs deliver the performance and reliability that modern electronics demand .

When properly selected and installed, these components provide:

• Superior attenuation: Up to -80 dB reduction in electromagnetic interference
• Broad frequency coverage: Consistent performance from 1 MHz to 600 MHz
• Mechanical integrity: Maintains shielding under vibration and dynamic conditions
• Long-term reliability: Proven performance in mission-critical applications
