Custom Spiral Spring Gasket Manufacturer for EMI & Sealing Solutions
Discover how custom spiral spring gaskets provide reliable EMI shielding and sealing performance in demanding industries. Learn about materials, designs, applications, and custom manufacturing solutions.
Introduction
In modern industries such as aerospace, telecommunications, medical devices, automotive electronics, and semiconductor equipment, sealing reliability and electromagnetic interference (EMI) protection are critical to product performance. Traditional sealing solutions often struggle in harsh environments involving vibration, thermal cycling, vacuum conditions, moisture, or high-frequency electromagnetic exposure.
This is where spiral spring gaskets offer a superior solution.
A custom spiral spring gasket combines excellent elasticity, stable contact force, long service life, and reliable conductivity into a compact sealing component. These gaskets are widely used for EMI shielding, environmental sealing, grounding, and conductive contact applications where conventional elastomer seals or metal gaskets may fail.
As a professional custom spiral spring gasket manufacturer, HANDA provides engineered sealing and EMI solutions tailored to demanding industrial applications.
What Is a Spiral Spring Gasket?

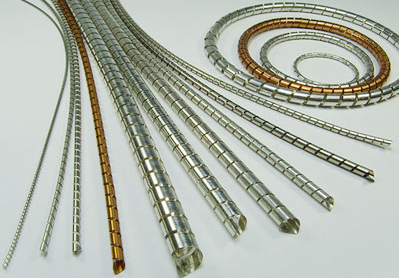

A spiral spring gasket is a metallic spring-based sealing component formed by continuously winding precision metal wire into a spiral structure. The spring geometry creates consistent radial or axial force, allowing the gasket to maintain stable contact pressure even under compression variation, vibration, or thermal expansion.
Unlike ordinary flat gaskets, spiral spring gaskets provide:
- Continuous conductive contact
- Elastic recovery
- Long-term mechanical stability
- Excellent EMI shielding performance
- Reliable sealing under dynamic conditions
They are commonly manufactured using stainless steel, beryllium copper, Elgiloy®, MP35N, or other high-performance alloys depending on the application environment.
How Spiral Spring Gaskets Work
The operating principle of a spiral spring gasket is based on controlled elastic deformation.
When compressed between two mating surfaces, the spiral spring structure generates uniform contact force. This force creates:
- Mechanical sealing against dust, moisture, gas, or contaminants
- Conductive continuity for EMI shielding and grounding
- Compensation for tolerance variation and thermal movement
Because the spring continuously stores elastic energy, it maintains reliable contact even after repeated compression cycles.
Key Advantages of Spiral Spring Gaskets
1. Excellent EMI Shielding Performance
Spiral spring gaskets are widely used in EMI/RFI shielding applications because the metal-to-metal contact creates a low-resistance conductive path.
Benefits include:
| Feature | Benefit |
|---|---|
| Continuous conductive contact | Improved shielding effectiveness |
| Stable spring force | Reduced signal leakage |
| Low contact resistance | Better grounding performance |
| Multi-point contact structure | Enhanced high-frequency shielding |
These characteristics make spiral spring gaskets ideal for:
- Shielded enclosures
- Military electronics
- RF communication systems
- Data centers
- Aerospace electronics
2. Superior Elastic Recovery
Compared with traditional metal gaskets, spiral spring gaskets provide excellent spring-back capability.
This allows them to:
- Compensate for dimensional tolerances
- Maintain sealing after thermal cycling
- Resist permanent deformation
- Improve long-term reliability
The elastic structure is especially valuable in applications involving vibration, shock, or repeated assembly.
3. Wide Temperature Resistance
Custom spiral spring gaskets can operate in extreme environments depending on material selection.
| Material | Typical Temperature Range |
|---|---|
| Stainless Steel | -200°C to 650°C |
| Elgiloy® | High corrosion & temperature resistance |
| Inconel® | Extreme heat applications |
| Beryllium Copper | Excellent conductivity |
This makes them suitable for:
- Aerospace systems
- Semiconductor processing
- Vacuum equipment
- Cryogenic applications
- Oil & gas systems
4. Long Service Life
Because the spring geometry distributes stress evenly, spiral spring gaskets typically achieve longer operational life than conventional elastomer seals.
Advantages include:
- Reduced wear
- Stable compression force
- High fatigue resistance
- Minimal maintenance requirements
Custom Spiral Spring Gasket Manufacturing Process
A reliable spiral spring gasket manufacturer must maintain tight dimensional control and consistent spring performance.
The manufacturing process generally includes:
Wire Material Selection
The correct alloy is selected based on:
- Conductivity requirements
- Corrosion resistance
- Temperature range
- Mechanical strength
- EMI shielding needs
Precision Coil Forming
Advanced forming equipment creates precise spiral geometry with controlled pitch, diameter, and spring force.
Critical parameters include:
- Wire diameter
- Coil pitch
- Compression force
- Contact density
- Free height
Heat Treatment
Heat treatment improves:
- Elastic recovery
- Fatigue resistance
- Mechanical stability
Proper thermal processing is essential for high-performance applications.
Surface Plating Options
Plating can improve conductivity and corrosion resistance.
Common plating options include:
- Gold plating
- Silver plating
- Nickel plating
- Tin plating
These coatings are especially important for EMI shielding and electrical grounding applications.
Common Applications of Spiral Spring Gaskets
Aerospace & Defense
Used in:
- Avionics systems
- Radar equipment
- Shielded enclosures
- Satellite electronics
Their lightweight structure and reliable EMI shielding are highly valued in aerospace applications.
Telecommunications
Spiral spring gaskets help protect sensitive communication equipment from electromagnetic interference.
Applications include:
- Base stations
- RF modules
- 5G infrastructure
- Communication cabinets
Medical Equipment
Medical devices require reliable sealing and electrical performance.
Typical uses include:
- Imaging systems
- Surgical devices
- Diagnostic equipment
- Shielded electronic housings
Semiconductor Equipment
Semiconductor manufacturing environments require:
- Ultra-clean sealing
- Vacuum compatibility
- Precision conductivity
- Thermal stability
Spiral spring gaskets are commonly used in wafer processing systems and vacuum chambers.
Spiral Spring Gasket vs Traditional Gaskets
| Feature | Spiral Spring Gasket | Traditional Elastomer Gasket |
|---|---|---|
| EMI Shielding | Excellent | Limited |
| Conductivity | High | Low |
| Elastic Recovery | Excellent | Moderate |
| High Temperature Resistance | Excellent | Limited |
| Fatigue Resistance | High | Lower |
| Service Life | Long | Shorter |
Factors to Consider When Choosing a Custom Spiral Spring Gasket Manufacturer
Selecting the right manufacturer is critical for product reliability.
Important considerations include:
Engineering Support
A qualified manufacturer should assist with:
- Groove design
- Compression analysis
- Material selection
- EMI performance optimization
Customization Capability
Every application has unique requirements.
Look for suppliers offering:
- Custom dimensions
- Special materials
- Plating options
- Prototype development
- Precision tolerances
Quality Control
Reliable manufacturers maintain strict quality systems including:
- Dimensional inspection
- Spring force testing
- Conductivity testing
- Fatigue testing
- Material traceability
Why Choose HANDA Spiral Spring Gaskets
HANDA specializes in custom spiral spring gasket manufacturing for high-performance sealing and EMI shielding applications.
Key advantages include:
- Custom engineering support
- Precision manufacturing
- Multiple material options
- Advanced plating capability
- Strict quality control
- Fast prototype development
- OEM & industrial solutions
Our spiral spring gaskets are widely used in aerospace, electronics, medical, semiconductor, and industrial systems worldwide.
Conclusion
As electronic systems become smaller, faster, and more sensitive to electromagnetic interference, the demand for reliable conductive sealing solutions continues to grow.
Custom spiral spring gaskets provide an ideal combination of:
- EMI shielding
- Elastic sealing
- Long service life
- High reliability
- Extreme environment resistance
By partnering with an experienced spiral spring gasket manufacturer like HANDA, engineers can achieve optimized sealing performance tailored to their exact application requirements.
Whether for aerospace electronics, semiconductor equipment, communication systems, or industrial machinery, spiral spring gaskets remain one of the most effective solutions for advanced EMI and sealing challenges.
