Mechanical Connecting Springs
Handa Mechanical Connecting Spring is one of the reliable solutions to mechanical connection problems. Their small size, simple installation and versatility help you reduce the complexity and weight of your mechanical systems while improving their performance.
The Mechanical Connecting Spring has latch, lock and hold functions, is tool-free to install, and is rugged enough to withstand thousands of insert/remove cycles.
How to solve the mechanical connection problem
Handa mechanical connecting springs have multiple functions, which can solve various problems in mechanical connection and improve system performance and reliability.
Its flexible design and precision control capabilities make it ideal for solving complex mechanical connection problems.
Latching
Secure the two equipment components together, while facilitating multiple disassembly and replacement
Locking
Two device parts are permanently put together and cannot be removed without damaging the parts or springs
Holding
By using controlled spring forces to hold and align device components and facilitate sliding function
Locking & Quick-Release
Lock the components of the device together with the option to advance and bypass the lock for easy, low-force release
Product Specification
Recommended product size

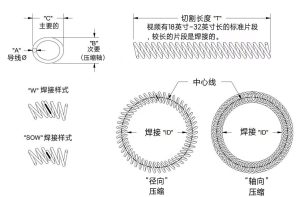

Above is the dimensional drawing of the Mechanical Connecting Spring, which can be customized according to your requirements.
You can select the appropriate mechanical connecting spring size according to the table on the right
* We can customize the material wire diameter and product height, width and inner diameter according to your needs
| СЕРИИ | Тип нагрузки | "A" (wire diameter) |
"B" | "C" | "T" (Длина отреза) |
"ID" (Welded ID) |
|---|---|---|---|---|---|---|
| HD-CS-L132 | L | 0.08 | 0.62 | 0.70 | 7.60 | 1.80 |
| HD-CS-M132 | M | 0.10 | 0.62 | 0.70 | 7.60 | 1.80 |
| HD-CS-H132 | H | 0.12 | 0.65 | 0.75 | 7.70 | 1.80 |
| HD-CS-L000 | L | 0.12 | 1.40 | 1.55 | 12.90 | 2.70 |
| HD-CS-M000 | M | 0.15 | 1.40 | 1.55 | 12.90 | 2.70 |
| HD-CS-H000 | H | 0.20 | 1.20 | 1.32 | 12.20 | 2.70 |
| HD-CS-L100 | L | 0.18 | 2.00 | 2.40 | 19.80 | 4.30 |
| HD-CS-M100 | M | 0.35 | 2.00 | 2.40 | 20.10 | 4.40 |
| HD-CS-H100 | H | 0.35 | 2.00 | 2.30 | 19.80 | 4.30 |
| HD-CS-L200 | L | 0.30 | 2.80 | 3.20 | 30.10 | 6.80 |
| HD-CS-M200 | M | 0.35 | 2.80 | 3.20 | 30.10 | 6.80 |
| HD-CS-H200 | H | 0.40 | 2.80 | 3.20 | 30.10 | 6.80 |
| HD-CS-L300 | L | 0.40 | 4.00 | 4.50 | 42.70 | 9.60 |
| HD-CS-M300 | M | 0.50 | 4.00 | 4.50 | 42.70 | 9.60 |
| HD-CS-H300 | H | 0.60 | 4.00 | 4.50 | 42.70 | 9.60 |
| HD-CS-L400 | L | 0.50 | 5.50 | 6.00 | 61.20 | 14.00 |
| HD-CS-M400 | M | 0.60 | 5.50 | 6.00 | 61.20 | 14.00 |
| HD-CS-H400 | H | 0.70 | 5.50 | 6.00 | 61.20 | 14.00 |
| HD-CS-L500 | L | 0.60 | 8.20 | 9.20 | 96.40 | 22.50 |
| HD-CS-M500 | M | 0.70 | 8.20 | 9.20 | 96.40 | 22.50 |
| HD-CS-H500 | H | 1.00 | 8.20 | 9.20 | 96.40 | 22.50 |
| HD-CS-L600 | L | 0.70 | 11.40 | 12.80 | 152.00 | 37.00 |
| HD-CS-M600 | M | 1.00 | 11.40 | 12.80 | 152.00 | 37.00 |
| HD-CS-H600 | H | 1.20 | 11.40 | 12.80 | 152.00 | 37.00 |
Материал и покрытие
Handa mechanical connection springs are available in a variety of wire and surface treatments to meet specific performance requirements. In order to reduce the possibility of corrosion between different metals, we can make springs by electroplating metal materials. The choice of material affects the performance of the spring and its suitability for a particular application.
Stainless steel (304, 316, 316L)
BeCu(beryllium copper)
BeCu(beryllium copper)
Оловянное покрытие
Nickle Plating
Золотое покрытие
Серебряное покрытие
Производство на заказ
Custom mechanical connection springs
According to the customer’s requirements, Handa Shielding provide drawings or dimensions and working conditions requirements for product customization. If necessary, please contact sunny@handashielding.com and a professional engineer will answer your questions. Thank you!

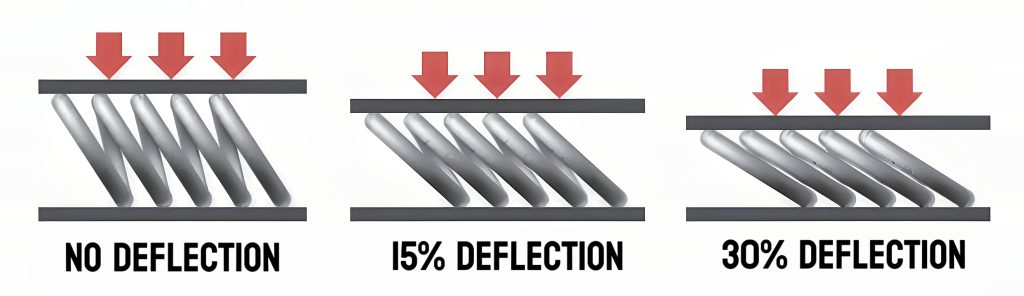

Compressive force performance of Mechanical Connecting Spring

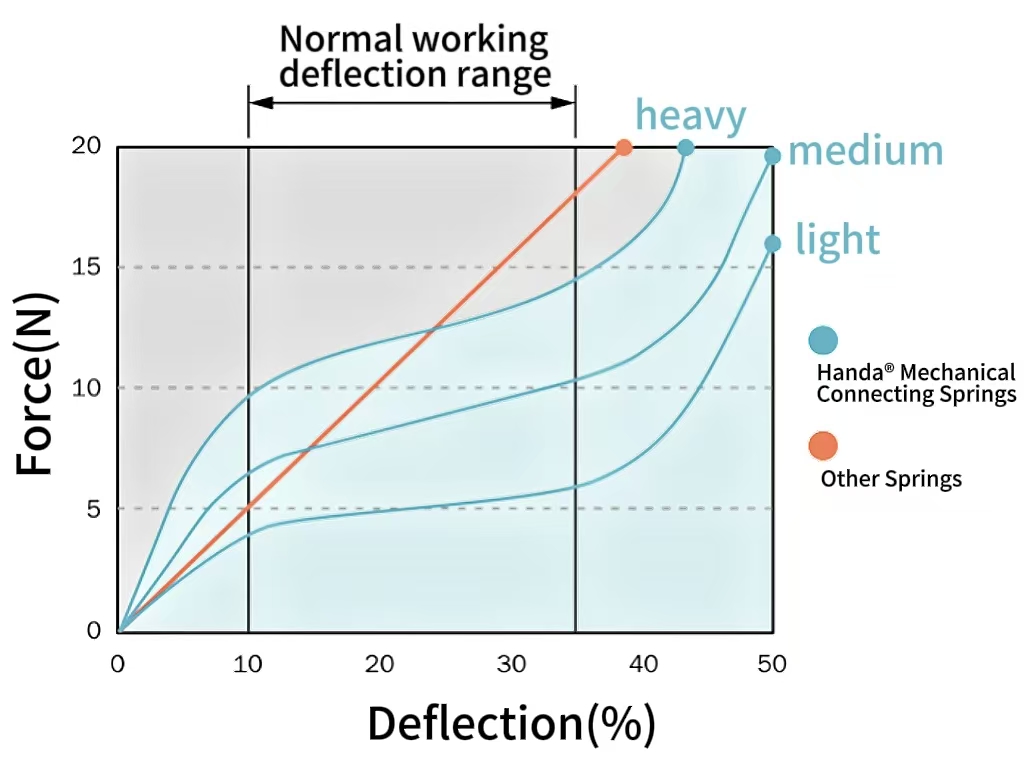

Under compression, the spring exhibits unique deflection force characteristics. Unlike conventional springs, our springs maintain a near-constant force output over the entire operating deflection range, and this force characteristic remains stable over a wide temperature range. The spring design has the ability to resist compression deformation, and each coil can compensate each other to adapt to position deviations, dimensional tolerances and mating surface irregularities. By precisely adjusting parameters such as spring slots, spring dimensions and wire diameters, we can achieve precise force control for functions such as latching, locking, holding, connecting and disconnecting.
