Conductive Cloth Tape

HANDA Conductive Cloth Tape is a triple-layer composite material combining metal-coated fabric, pressure-sensitive adhesive, and functional coatings to create a flexible, durable solution for:

  • ✨ EMI/RFI Shielding – Seals enclosures and cable penetrations

  • ⚡ Static Dissipation – Safeguards sensitive electronics

  • 🛡️ Environmental Sealing – Resists moisture, chemicals, and abrasion
    Trusted by medical robotics, 5G infrastructure, and EV manufacturers globally.

Availability

Custom Yes


Request a Quote



Request a Quote


conductive cloth/fabric tape


Custom Manufacturing

Custom HANDA Conductive Cloth Tape

HANDA Conductive Cloth Tape can be customized to meet specific application requirements. Customization options include:

  1. Width and Length: Specify the width up to 150 mm and length up to 100 meters. Custom widths and lengths can be produced upon request to suit particular applications.
  2. Thickness: Depending on the shielding needs, different thicknesses such as 0.005~0.05mm(tolerance within  ±5%) can be produced.

Request a Custom Quote

conductive cloth/fabric tape

Product Specs

Material Properties

It is a high-permeability alloy primarily used for shielding low-frequency magnetic fields. It typically consists of nickel, iron, copper, and chromium among other metals, with the exact composition adjustable based on various applications.

Properties Item Data Remarks
Magnetic Saturation polarization 0.74 T 20°C
Saturation magnetostriction ca. 1 ppm
Curie temperature 700°F (370°C)
AC Magnetic Initial permeability(60Hz) at B=40G [μ(40G)] 100,000
μ at H= 4mA/cm [μ4] 250,000
Max. permeability [μmax] 350,000
Coercivity [Hc] 20 mOe (15 mA/cm)
Saturation induction, Magnetic flux density [Bs] 7,400 G (0.74 T)
Physical Mass density 8.7 g/cm3 ESQ-612-38
Electrical resistivity 0.6 x 10-6 Ohm m
Coefficient of thermal expansion 13.5 x 10-6 K-1 20~100°C
Mechanical Hardness (HV) 270~420
Tensile strength 1280 N/mm2 > 0.2mm
Yield strength 1230 N/mm2
Elongation 1~3 %

Advantages

HANDA Conductive Cloth Tape works well for shielding low-frequency magnetic fields. Due to the low electrical resistance it shields both low-frequency electric fields (LF) and high-frequency fields (HF). Comparable with Mu-Metal specifications.

  • Easy Handling

    • Cut with scissors & apply to complex surfaces

    • Conforms tightly to curves and joints

  • Powerful Shielding

    • >80 dB attenuation at 1-3 GHz (single layer)

    • <0.03Ω resistance for instant static discharge

    • 100+ dB protection at 10 GHz (triple-layer)

  • Universal Applications

    • Seals cables, enclosures, and sensors

  • Extreme Resilience

    • Withstands -70°C to 260°C

    • Resists chemicals, moisture, and vibration

    Applications

    • Medical Grade:

      • Non-ferromagnetic (μ<1.01)

      • Sterilization-compatible (autoclave/ETO/gamma)

    • Extreme Environment:

      • Operational range: -70°C to 260°C (silicone adhesive version)

      • 1,000+ hr salt spray resistance (ASTM B117)

    • Automation Ready:

      • Pre-die-cut shapes for robotic application

      • Compatible with Nordson/ASYMTEK dispensers

      Dimensions Measurement Guide

      HANDA Conductive Cloth Tape is a thin foil; its thickness is only 0.05~0.15mm, tolerance within  ±5%. It combines excellent soft magnetic properties with unusual mechanical hardness and flexibility. This means that tight bends can be realised with only very slight impairment of permeability. The fine strip thickness and comparatively low electrical conductivity permit effective shielding even of higher-frequency fields. The roll can be ordered ordered up to 100 meter in length and a width up to 50 meter.

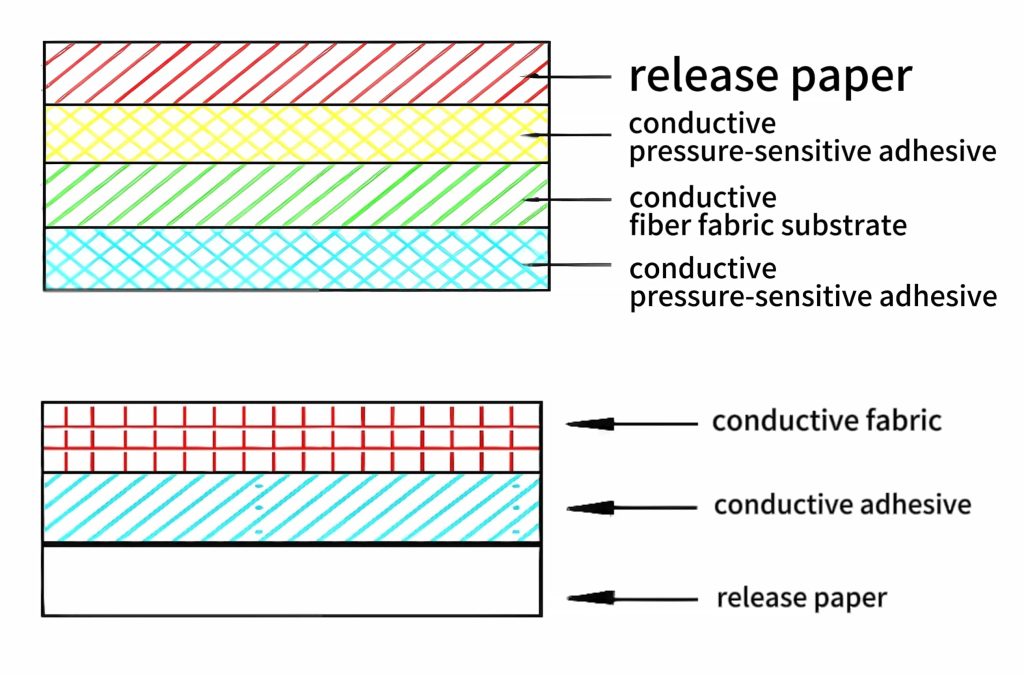

      structure of conductive fabric_compressed

      Why Global Partners Choose HANDA

      • Rapid Customization: 15-day special order turnaround (industry avg: 45 days)

      • Compliance Mastery: Pre-certified stocks for UL (US), CE (EU), KC (Korea)

      • Technical Partnership:

        • On-demand EMI simulation reports

        • Application engineering support

      • Sustainable Production:

        Recycled metal coatings (SGS-certified)

        • Carbon-neutral shipping options
